used to measure the conductivity of conventional aqueous solutions, Automatically recognize 8 kinds of conductivity standard solutions, two standard solutions are optional: Europe, America and China series; Comply with IP54 dust-proof and splash-proof design.

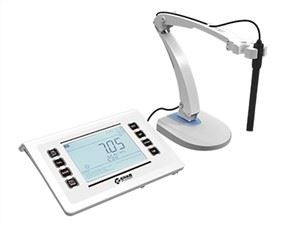

OC-YP902 Conductivity tester
Description:
The new conductivity tester is simple to operate and convenient to use. It is used to measure the conductivity of conventional aqueous solutions, especially in education and scientific research and other fields.
Electrical conductivity is a characteristic index of purified water, reflecting the purity of the purified water and the control of the production process.
Electrical conductivity is one of the important parameters for evaluating the performance of electroplating baths. The arrival model of the electroplating solution, that is, the high conductivity, can not only reduce the voltage of the electroplating tank, save power, but also improve the dispersion ability of the electroplating solution.
Features:
6.5-inch LED screen, Omron long-life touch button type;
Meet the GLP requirements of international standards, with functions such as automatic calibration and automatic temperature compensation;
Adopt advanced conductivity measurement technology, use conductivity electrode with constant K=1, only need one point calibration;
The instrument is equipped with a Bluetooth module as standard, supports wireless Bluetooth printing, which is convenient for users to operate;
Large-capacity storage of 2000 sets of measurement data, the data can be transmitted via U disk, and can be opened via EXELL;
Automatically recognize 8 kinds of conductivity standard solutions, two standard solutions are optional: Europe, America and China series;
Comply with IP54 dust-proof and splash-proof design.
Applications:
The new conductivity tester is simple to operate and convenient to use. It is used to measure the conductivity of conventional aqueous solutions, especially in education and scientific research and other fields.
Ada Bu
Whatsapp: +8615981942832
Add: No. 923, 9th Floor, Unit 2, No. 78, Shangding Road, Zhengzhou Area, Henan Pilot Free Trade Zone
Email: [email protected]
Hot Tags: Conductivity Tester, manufacturers, suppliers, factory, china, buy, customized, quotation, low price, TDS Meter Pen, Water Level Recorder
Previous: Water Level Recorder
Next: No Information
Technical Parameter:
Items | Specification |
Measuring range | Conductivity：（0 ~200）mS/cm，Divided into five ranges：（0.00~20.00）μS/cm （20.0~200.0）μS/cm Resistivity:（0 ~ 100）MΩ·cm Salinity:（0 ~ 100）ppt |
Accuracy | Electricity meter：±1.0% FS Matching：±1.50%FS |
Electrode constant | 0.1/1/10CM-1 |
Resolution | 0.01/0.1/1μS/cm； 0.01/0.1mS/cm |
Temperature compensation range | Manual / Auto（-5~105.0）℃ |
Measuring range | -10℃~110℃ |
Resolution | 0.1℃ |
Accuracy | 5~60℃ range ：±0.5℃ Remaining range：±1.0℃ |
System specification:
Display screen | 6.5 inch HD LED screen |
Data storage | 100 groups |
Newsletter connector | USB2.0, Bluetooth wireless, 232 |
Working conditions | temperature: 5-40 degrees humidity: 5-85% |
Power supply | 9V2A (110-220, 50Hz-60Hz adapter) |
Product size and weight | 160 × 190 × 70mm/880g |
